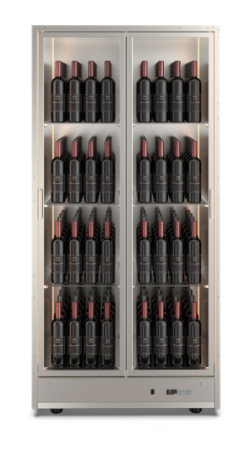

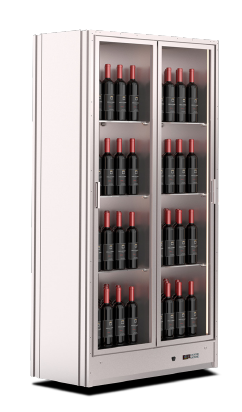

Mod-13

The MOD 13 range from Della Marta are multi-temperature, luxury wine cabinets with swing doors and vertical placement of bottles, designed for home or commercial use. Models within the range can be placed freestanding or be built into a wall recess or alcove, depending on your preference. Made with a full aluminium structure, you can also choose a finishing to suit traditional or linear styles. Choose a frame style that complements your decoration and, for added uniqueness, you can even combine multiple modules to create a Wine Wall.

Home Use Models

	MD-M13 128 bottle capacity Warm white LED lighting Solid back with double swinging glass doors and lock W900 x H1858 x D515mm Weight 117kg Noise level 39dB Technical Specification: MD-M13 (PDF)
	MD-C13 128 bottle capacity Warm white LED lighting Double swinging glass doors both sides and lock W900 x H1858 x D520 Weight 151kg Noise level 39dB Technical Specification: MD-C13 (PDF)

Commercial Use Models

	MP-M13 128 bottle capacity Warm white LED lighting Solid back with double swinging doors and lock W900 x H1858 x D515mm Weight 117kg Noise level 47dB Technical Specification: MP-M13 (PDF)
	MP-C13 128 bottle capacity Warm white LED lighting Double swinging glass doors both sides and lock W900 x H1858 x D520 Weight 151kg Noise level 47dB Technical Specification: MP-C13 (PDF)

Temperature Settings

White Wines	Red & White Wines	Red Wines

Internal Finishing

Frame Options

Key Features

Multiple Temperature Zones:

• Range of 4 to 20°C

*128 Bottle Capacity:

• Maximum storage capacity based on Bordeaux shape bottles, other bottle formats may reduce capacity

Energy Efficient:

• The MOD 13 range feature multiple temperature zones, with low energy consumption and various options depending on fan settings and temperature settings. Control is achieved through a digital panel, managing lighting, fans and defrost cycles

Interior & Exterior

The MOD 13 range features swinging doors with a double glazed, UV-treatment to safeguard your collection. Lit by warm white LED lighting, the interior boasts a high-quality aluminium construction. An automatic defrost and evaporation system maintain optimal storage conditions, with lockable doors for added security.

A Note About Installation

For proper installation, built-in models need a 30mm gap behind them to prevent overheating and ensure a sufficient airflow. This gap ensures effective ventilation, preventing vibrations and enabling warm air to escape. It is essential to have ample clearance between the floor and the lower section of the wine wall to maintain unrestricted airflow.
