Wine wall with Solid Oak Racking

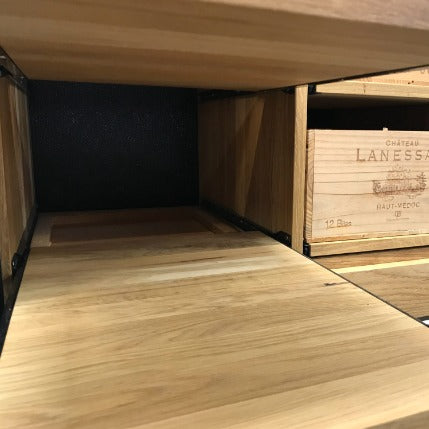

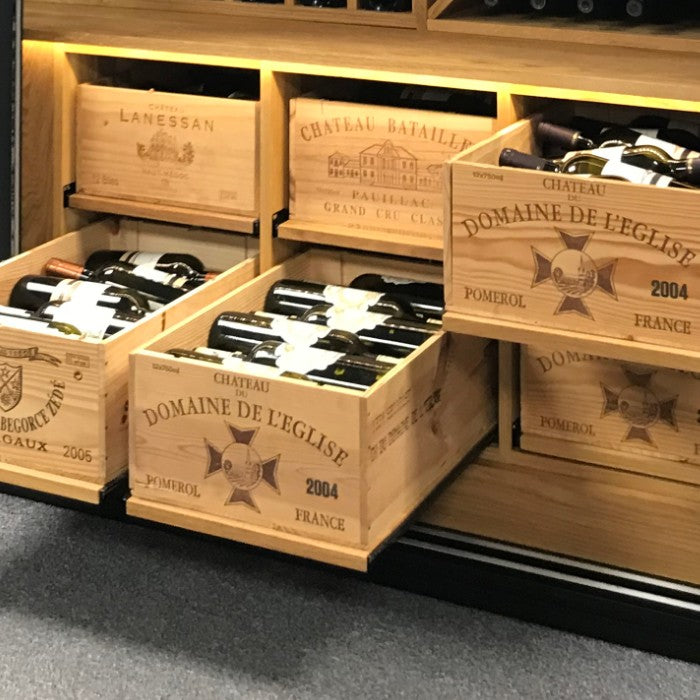

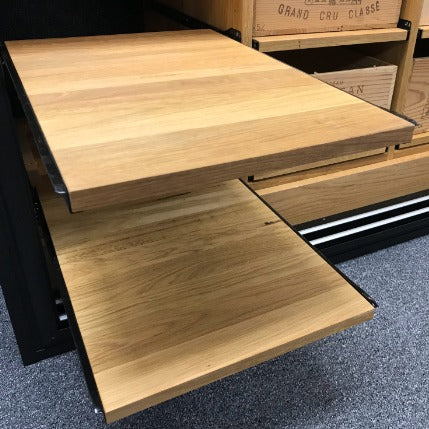

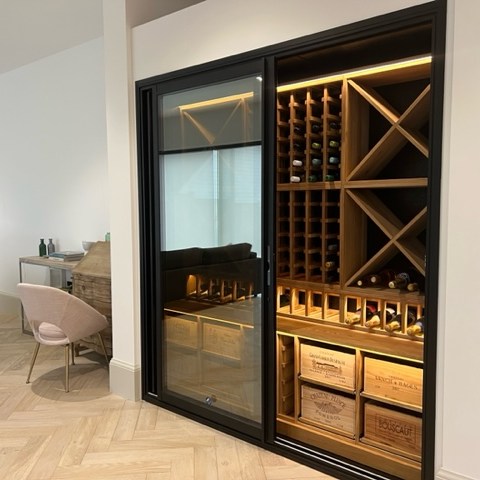

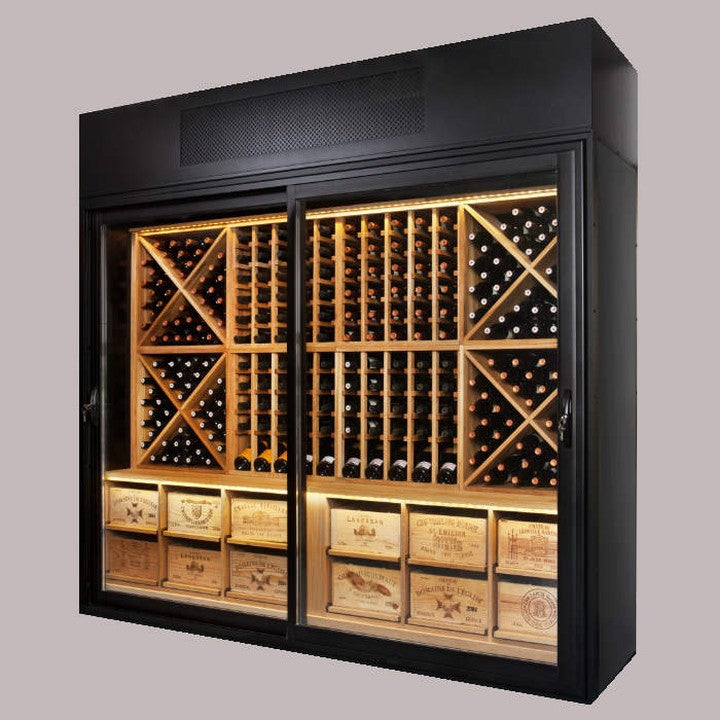

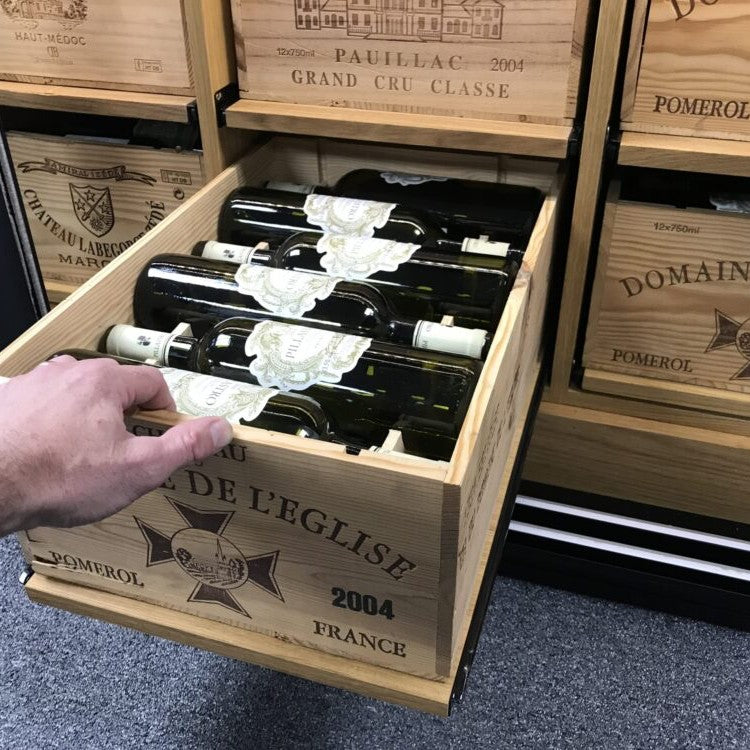

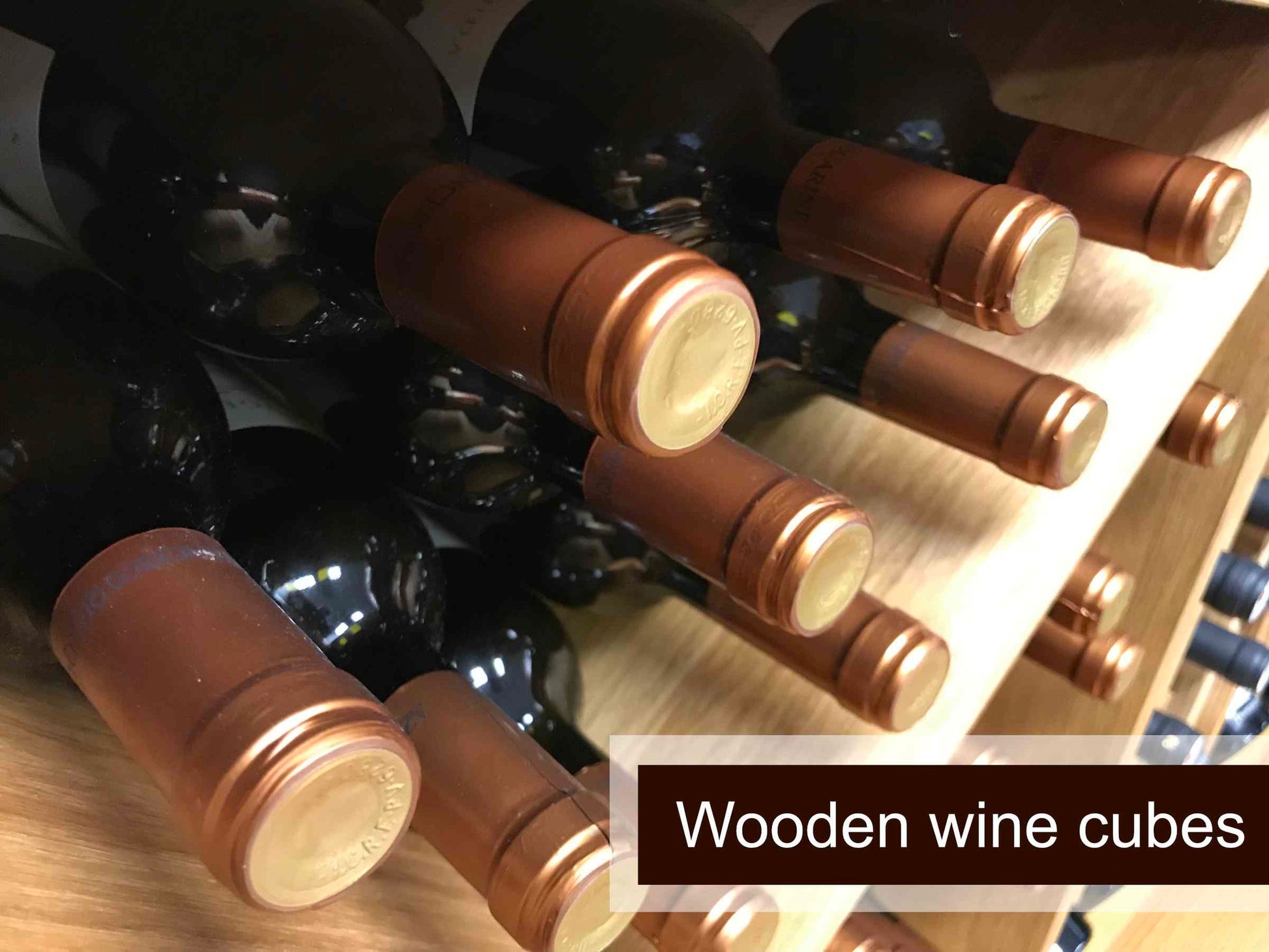

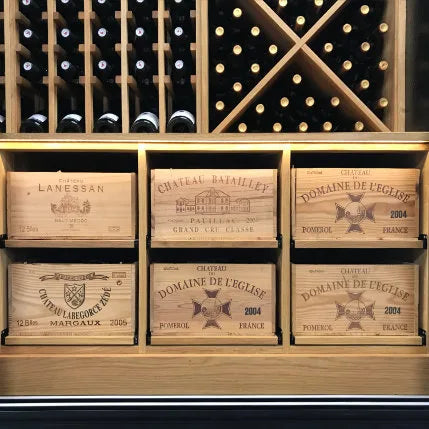

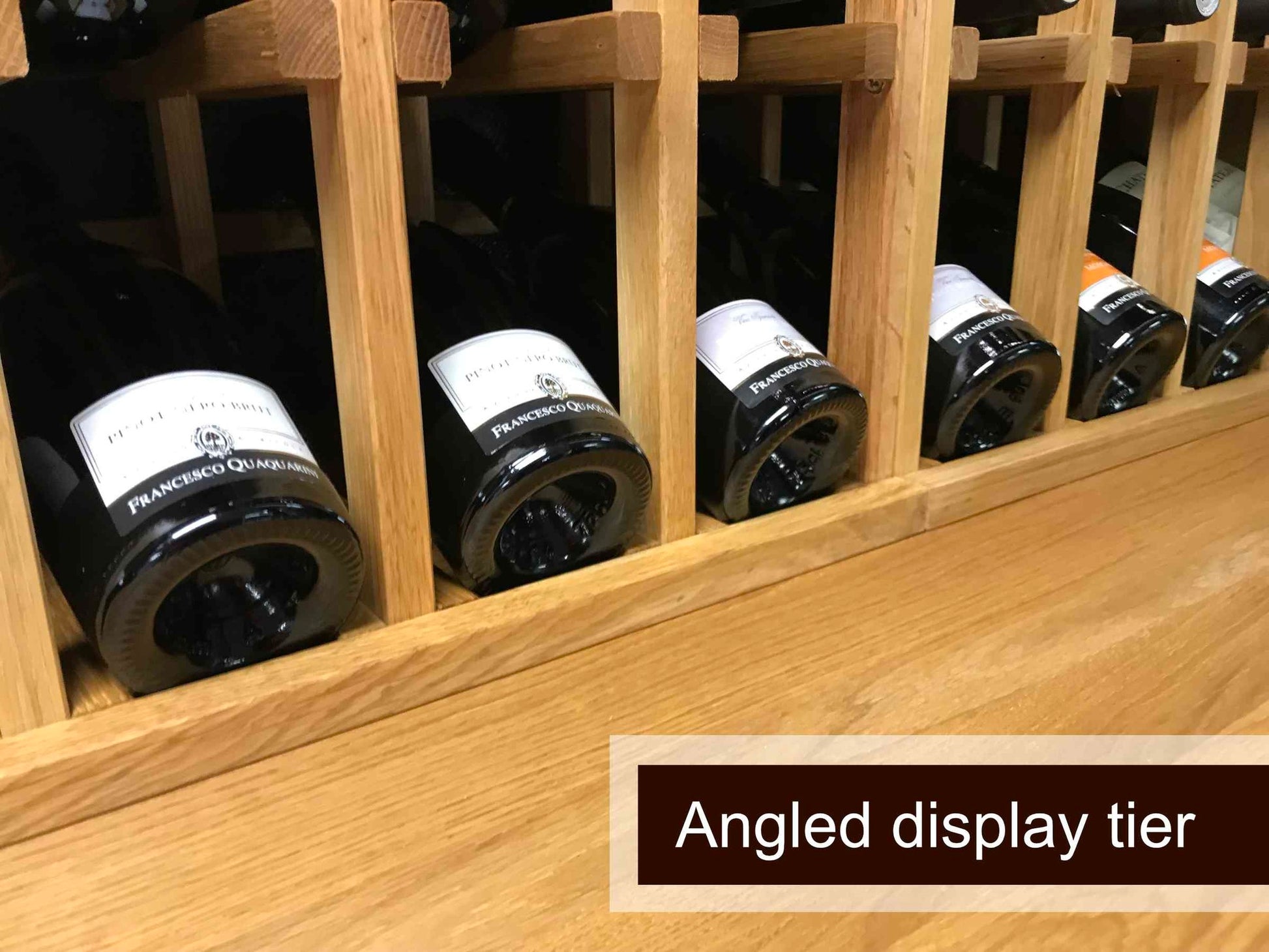

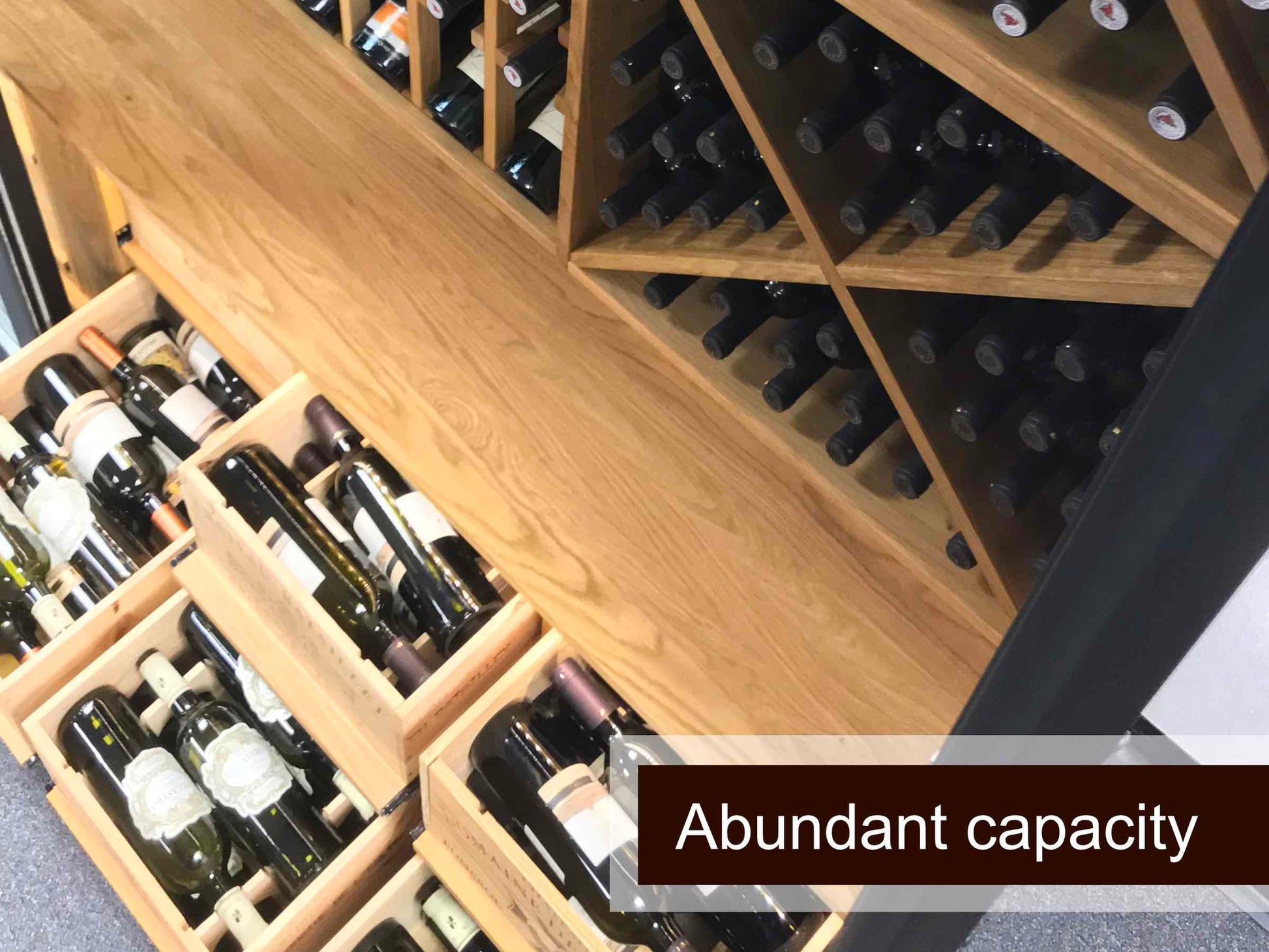

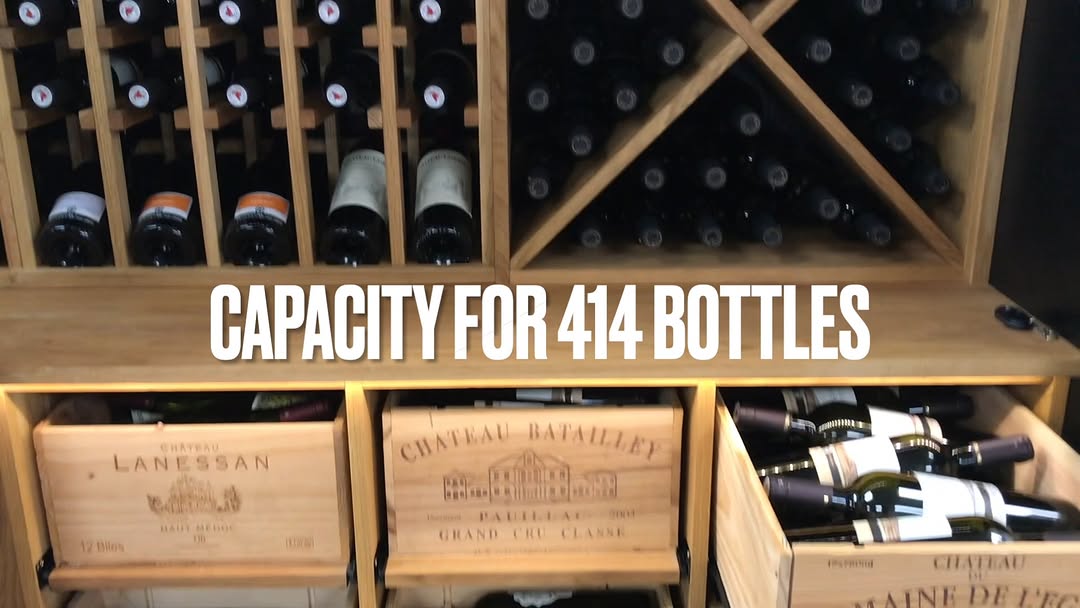

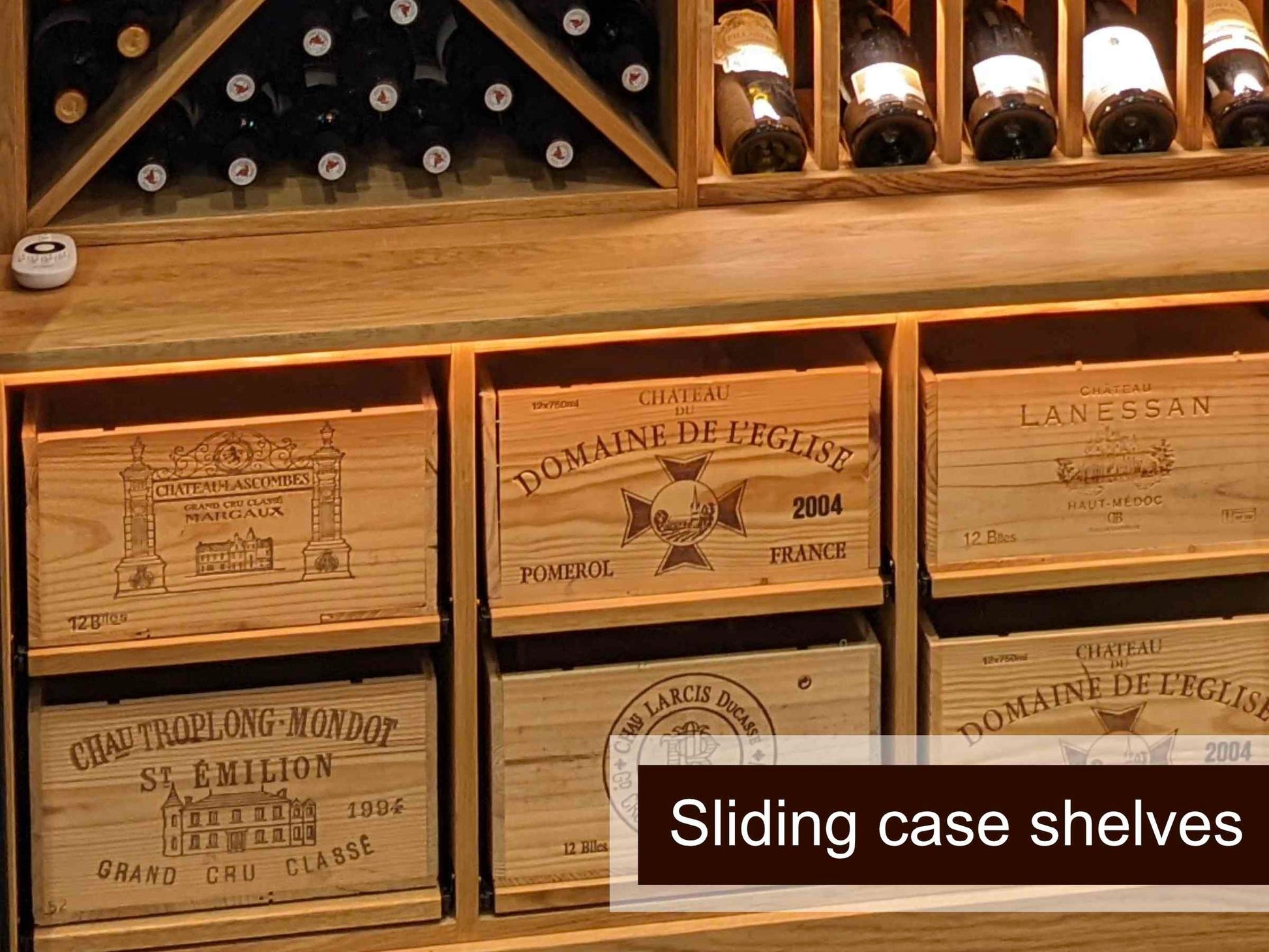

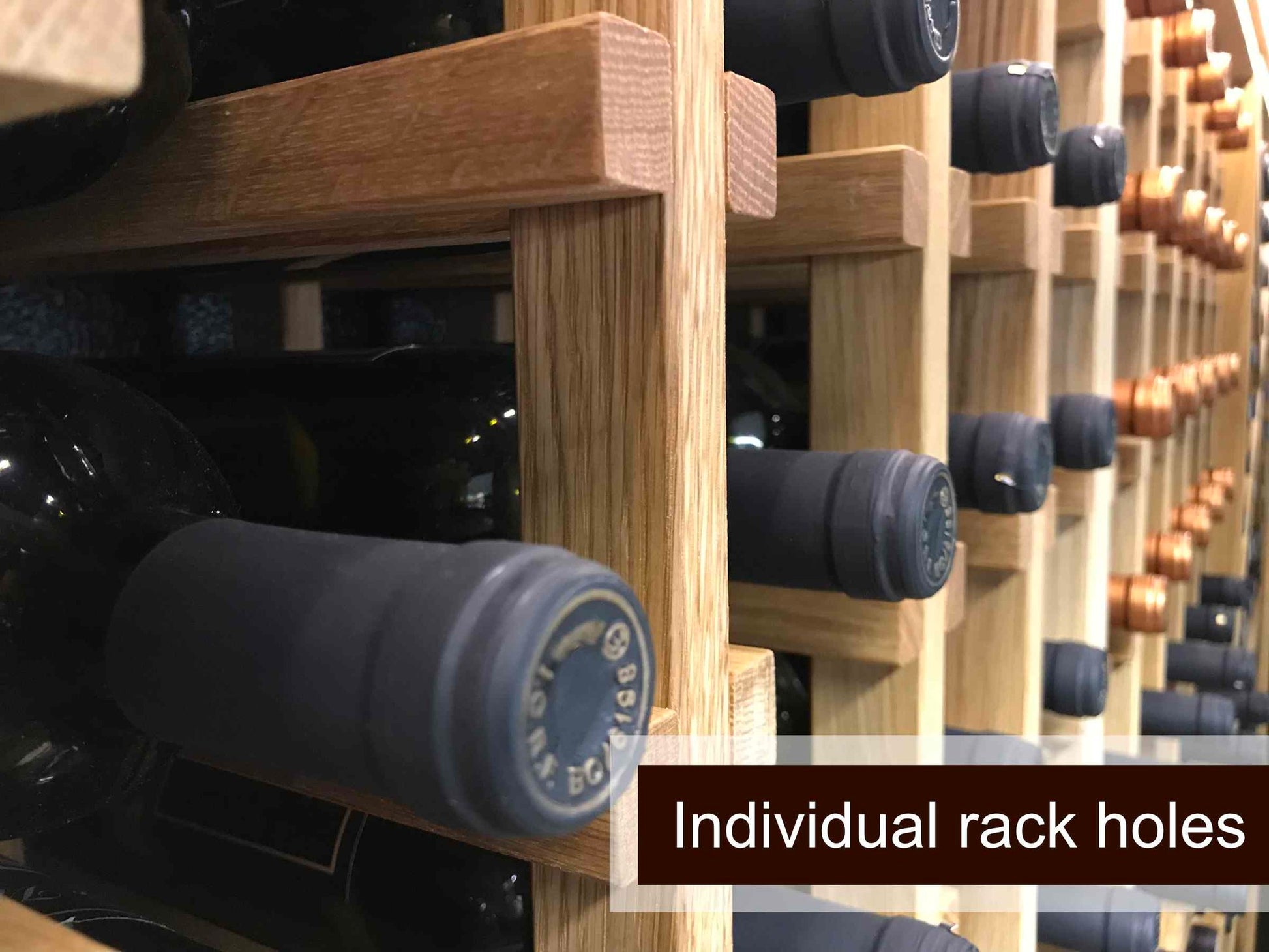

The Wine Wall is the epitome of wine storage – in your home or in a restaurant - featuring solid Oak racking in a magnificent, temperature-controlled cabinet which is totally self-contained and needs no plumbing or drainage. Perfectly suited as a wine maturing or serving cabinet, the 2.495m wide model, as pictured, boasts ample capacity for 414 bottles, including 12 wooden cases on sliding shelves and multiple oak racks including a mixture of wine cubes and individual bottle racks with some bottles at a display angle. The solid Oak wine racking is bespoke, so can be changed to suit your individual requirements. The Wine Wall - which is freestanding - can also be installed within a recess or alcove, however, certain regulations need to be observed, particularly concerning ventilation, air circulation and electrical wiring.

Key Features

• Customise the solid Oak racking to suit your specific requirements
• Wine Walls are available in widths from 1m to 4.9m (model shown is 2495mm wide)
• Self-contained cooling unit, no plumbing or drainage required
• 2 cooling units required for widths >3m

• Perfect cellar temperature and humidity
• Temperature range 12 –18°C

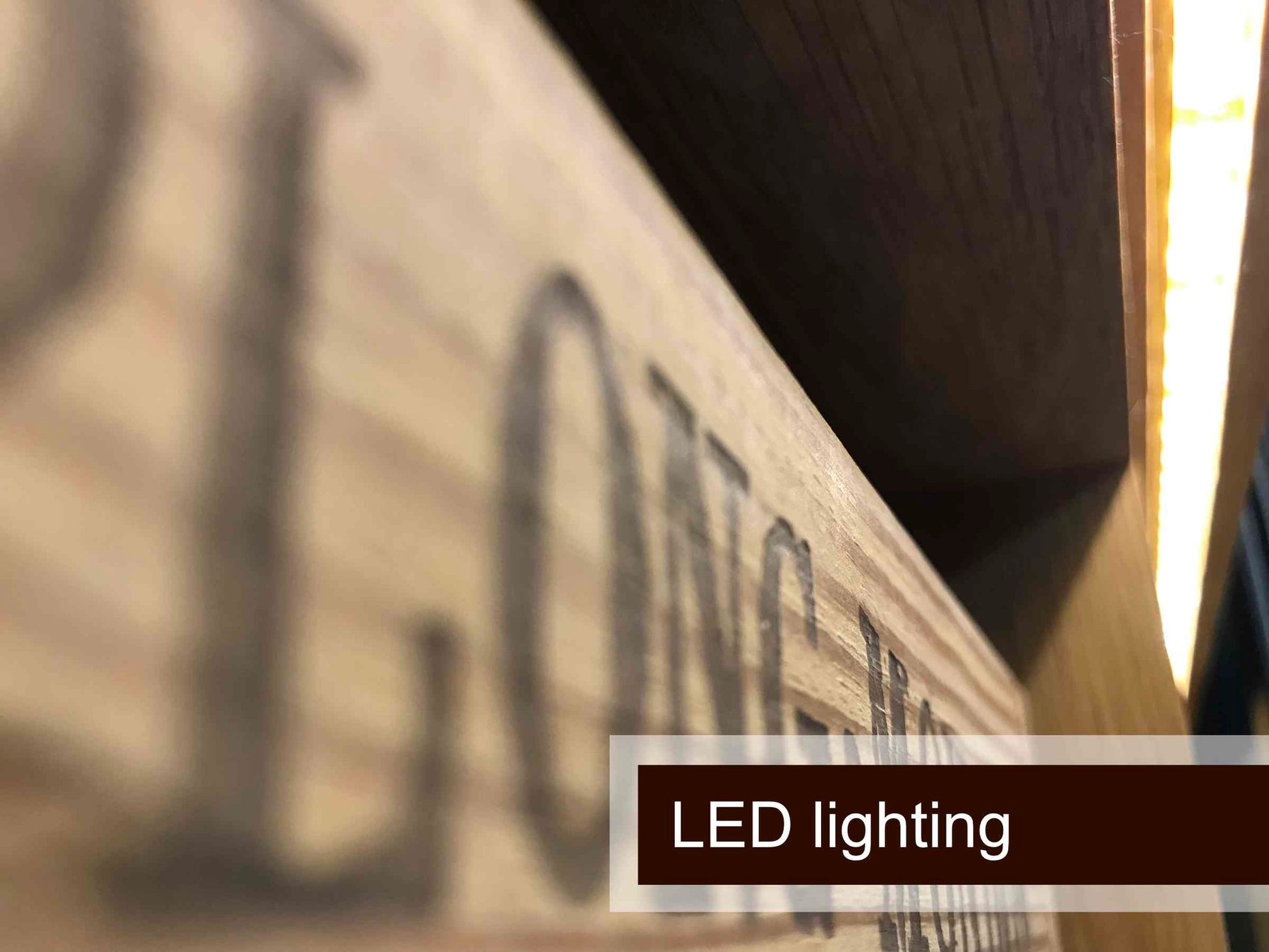

• Warm white LED lighting in 3 tiers, with remote-control
• Lockable, double-glazed, UV protected sliding doors
• Available in any RAL colour, standard is RAL9005 Jet Black
• Delivery & installation included

Dimensions

Depth: 710mm  (this can be increased to create a walk-in cellar, but cannot be reduced)

Height: A minimum ceiling height of 2400mm is required to accommodate the cabinet (2000mm) and conditioning unit (400mm) that sits atop.  With a minimum ceiling height of 2600mm, the internal storage capacity can be increased with a cabinet of height 2200mm.

Width: Available in widths from 1000mm - 4900mm.

Installation

We do not supply the cover panel that conceals the cooling equipment above the cabinet, you would need to engage a local carpenter or contractor to build and install this for you.  Customers often want this to match their surrounding wall finish or cabinetry.  A minimum of 1200cm² of ventilation must be included, either with a gap between the top of the cover panel and the ceiling or ventilation grilles in the cover panel.  The panel should be removable to allow for maintenance and repairs.  Wine Storage Solutions can assist your contractor with the design of this when required.

Installation of the Wine Wall with Solid Oak Racking takes place in two phases.  The first phase is to install the cabinet and cellar conditioning equipment, whilst the second phase is for our carpentry team to install the solid oak racking and LED lighting.  Whilst these two phases cannot happen on the same day, we do our very best to ensure the shortest time between phases. The floor where the Wine Wall will sit needs to be flat and level and there needs to be sufficient room for our assembly team to sit the base about 1m from the wall.  This is required to allow the team enough space to walk all around the cabinet and attach the side panels and top, before sliding it into its final resting place.  Important to note, assembly and placement in this fashion are not possible if the width of the room is equal to the width of the Wine Wall.  In such cases a smaller Wine Wall must be selected.
