EVPL2
EVPL2
Unconcealed ceiling-mounted evaporator, for rooms up to 30m³, paired with a direct air condensing unit from the split system GCH Group. The SPC30 H-EVPL2 system provides cooling, heating and humidification on R513A refrigerant, with the indoor evaporator separated from the outdoor condenser to keep cellar noise low.
Key Features
Key Features
- Ceiling-mounted evaporator keeps floor and wall space completely clear
- Split configuration isolates the compressor outdoors, significantly reducing in-cellar noise
- Full three-function climate control: cooling, heating and humidification in a single system
- Maintains optimal wine storage conditions — typically 10–14 °C with controlled humidity — throughout the year
- R513A refrigerant: a low global-warming-potential gas meeting current European environmental regulations
- Six capacity sizes from 30 m³ up to 230 m³, with the GCH condensing unit matched to your cellar volume
Taxes included.
Shipping calculated at checkout.
Quantity
Want to order this product?
Complete the short enquiry form or call
Request a Quote
EVPL2
Description
The EVPL2 is an unconcealed ceiling-mounted split-system wine cellar conditioner that pairs a compact indoor evaporator with a separate outdoor condensing unit — keeping your cellar quietly climate-controlled while all the mechanical noise stays outside. Available for cellars of up to 230m³, it delivers continuous wine storage performance with cooling, heating and humidification built in as standard.
Key Features
- Split configuration separates the indoor evaporator from the outdoor condenser, keeping cellar noise to a minimum
- 3 condensing options
- GCH - Air Condensing
- GCG - Ductable Air Condensing
- GCW - Water Condensing
- Cooling, heating and humidification in a single system — maintains ideal wine storage conditions year-round
- Ceiling-mounted indoor evaporator for straightforward installation without sacrificing cellar floor or ceiling space
- Available in 6 capacities: up to 230m³, with the condensing unit matched to your cellar volume
- Uses R513A refrigerant — a low global-warming-potential gas that meets current European environmental regulations
Specifications
- Cellar capacity: 30m³ / 48m³ / 82m³ / 122m³ / 170m³ / 230m³
- System type: Unconcealed ceiling-mounted split system
- Functions: Cooling, heating, humidification
- Refrigerant: R513A
-
Condenser units:
- GCH - Air Condensing
- GCG - Ductable Air Condensing
- GCW - Water Condensing
Installation Notes

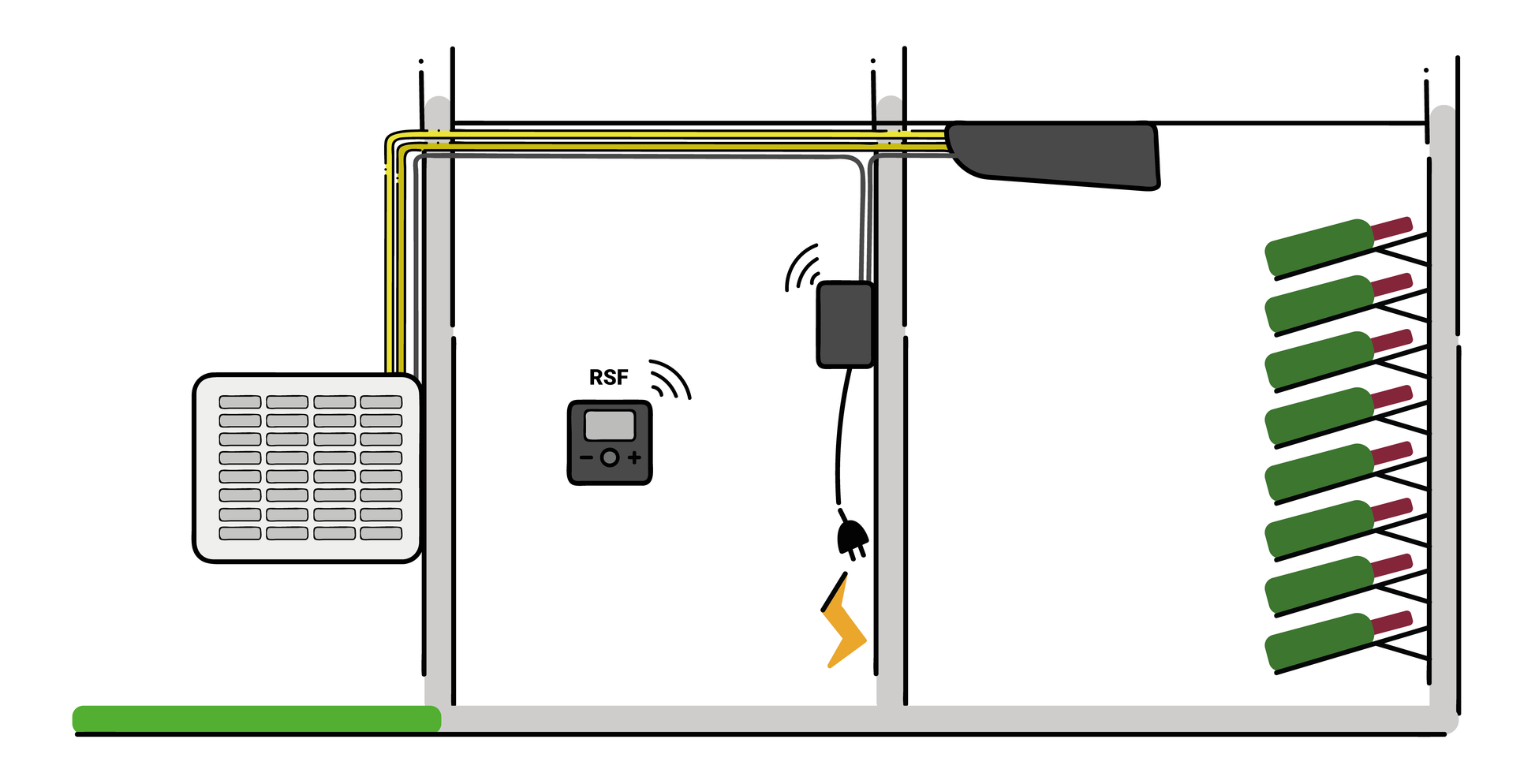

The EVPL2 uses a split configuration: the indoor ceiling-mounted evaporator unit is installed inside the cellar, while the condensing unit is positioned outdoors. This arrangement allows refrigerant pipework to be run between the two units, ensuring the compressor noise and heat rejection remain entirely outside the cellar environment. Installation should be carried out by a qualified refrigeration engineer. Please contact us if you require guidance on siting the outdoor unit or running pipework for your specific cellar layout.
