EVI
EVI

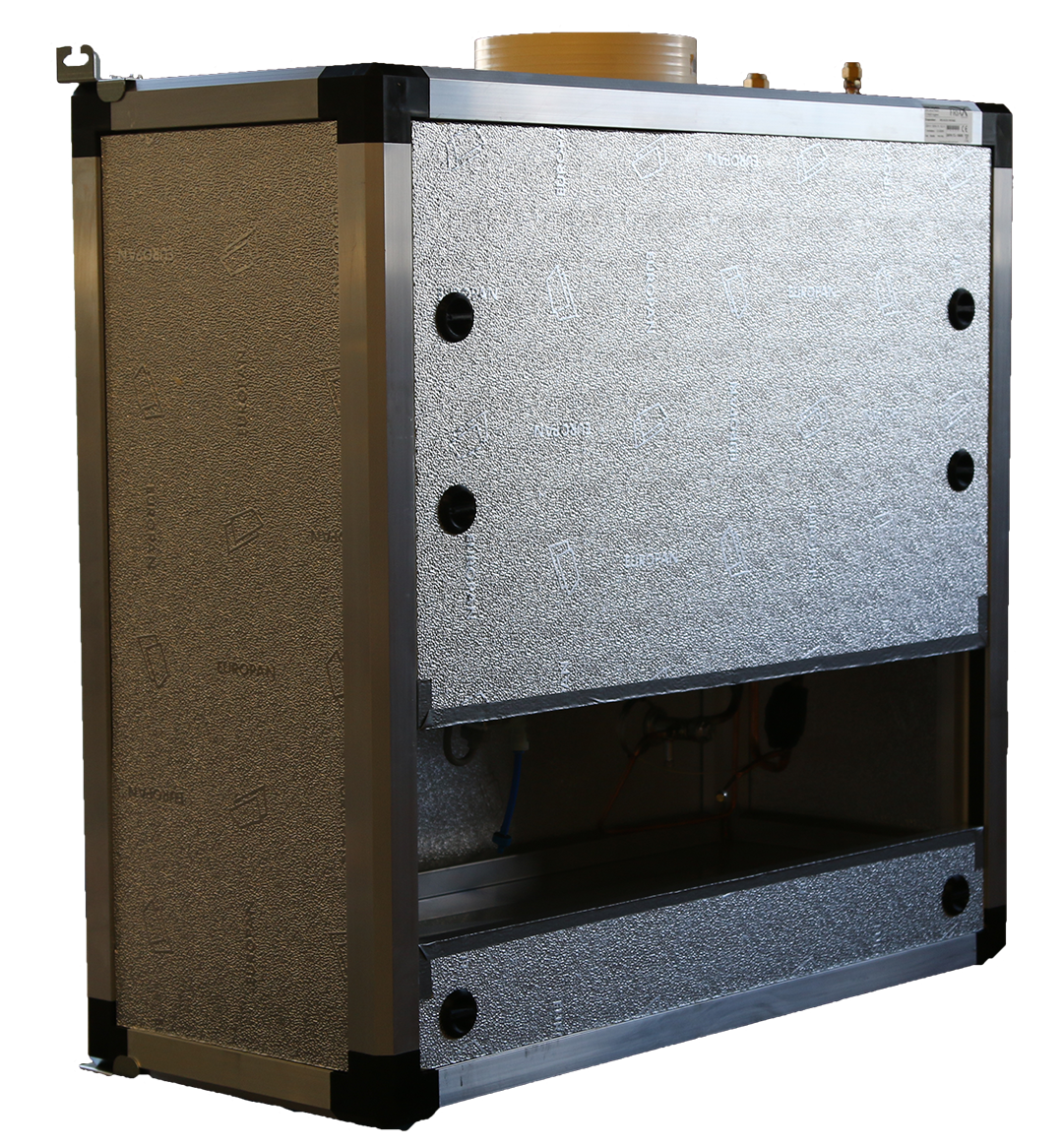

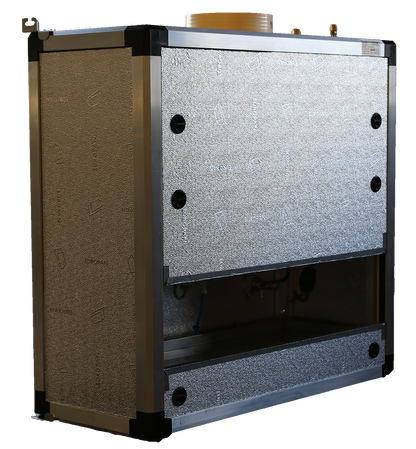

The EVI evaporator, wall-mounted and concealed in cabinetry, for rooms up to 30m³, paired with a direct air condensing unit from the split system GCH Group. The SPC30 H-EVI system provides cooling, heating and humidification on R513A refrigerant, with the indoor evaporator separated from the outdoor condenser to keep cellar noise low.
Key Features
Key Features
- Split-system design — indoor evaporator and outdoor compressor separated for minimal in-cellar noise
- Vertical ductable indoor unit suits cellars where horizontal duct runs aren't practical
- Full climate trio: cooling, heating and humidification in a single system
- Maintains optimal wine storage conditions (typically 10–14 °C with controlled humidity) throughout the year
- GCH direct air-condensing outdoor unit — no water drainage required for condenser heat rejection
- R513A refrigerant — low global-warming-potential gas meeting current European environmental regulations
- Six capacity sizes to match your cellar volume: 30, 48, 82, 122, 170 and 230 m³
Taxes included.
Shipping calculated at checkout.
Quantity
Want to order this product?
Complete the short enquiry form or call
Request a Quote
EVI
Description
The EVI is a split-system wine cellar conditioner that is wall-mounted and concealed in cabinetry or behind walls, that pairs a compact indoor evaporator with a separate outdoor condensing unit — keeping your cellar quietly climate-controlled while all the mechanical noise stays outside. Available for cellars of up to 230m³, it delivers continuous wine storage performance with cooling, heating and humidification built in as standard.
Key Features
- Split configuration separates the indoor evaporator from the outdoor condenser, keeping cellar noise to a minimum
- 3 condensing options
- GCH - Air Condensing
- GCG - Ductable Air Condensing
- GCW - Water Condensing
- Cooling, heating and humidification in a single system — maintains ideal wine storage conditions year-round
- wall-mounted and concealed in cabinetry indoor evaporator for straightforward installation without sacrificing cellar floor or ceiling space
- Available in 6 capacities: up to 230m³, with the condensing unit matched to your cellar volume
- Uses R513A refrigerant — a low global-warming-potential gas that meets current European environmental regulations
Specifications
- Cellar capacity: 30m³ / 48m³ / 82m³ / 122m³ / 170m³ / 230m³
- System type: Wall-mounted and concealed in cabinetry or behind walls, split system
- Functions: Cooling, heating, humidification
- Refrigerant: R513A
-
Condenser units:
- GCH - Air Condensing
- GCG - Ductable Air Condensing
- GCW - Water Condensing
Installation Notes

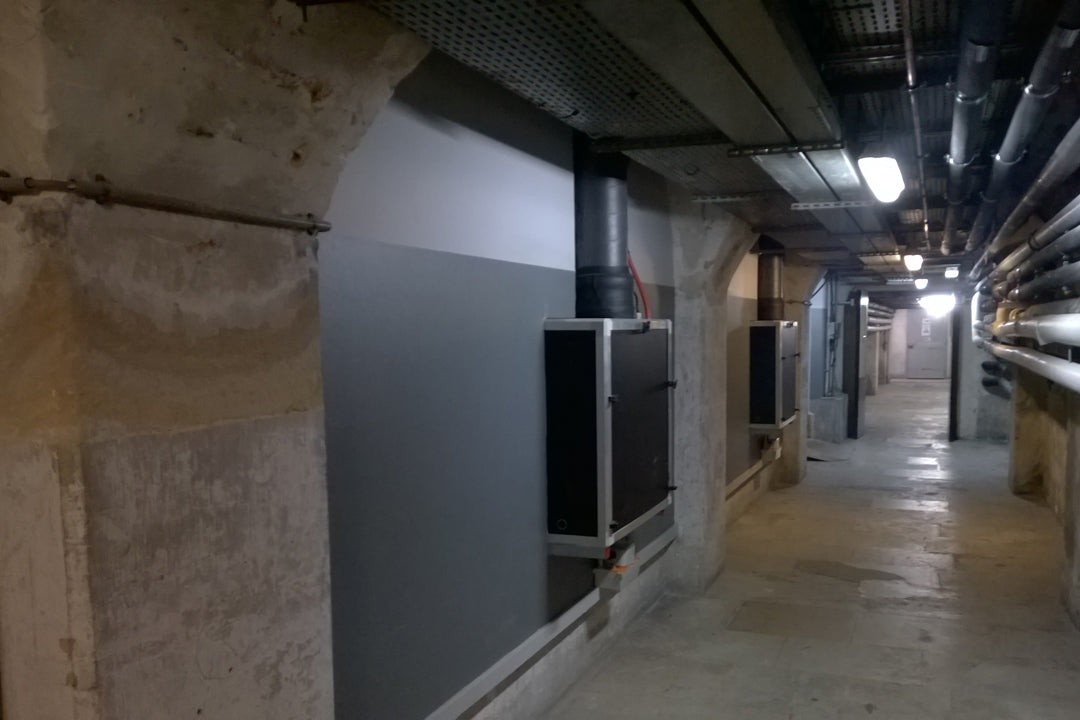

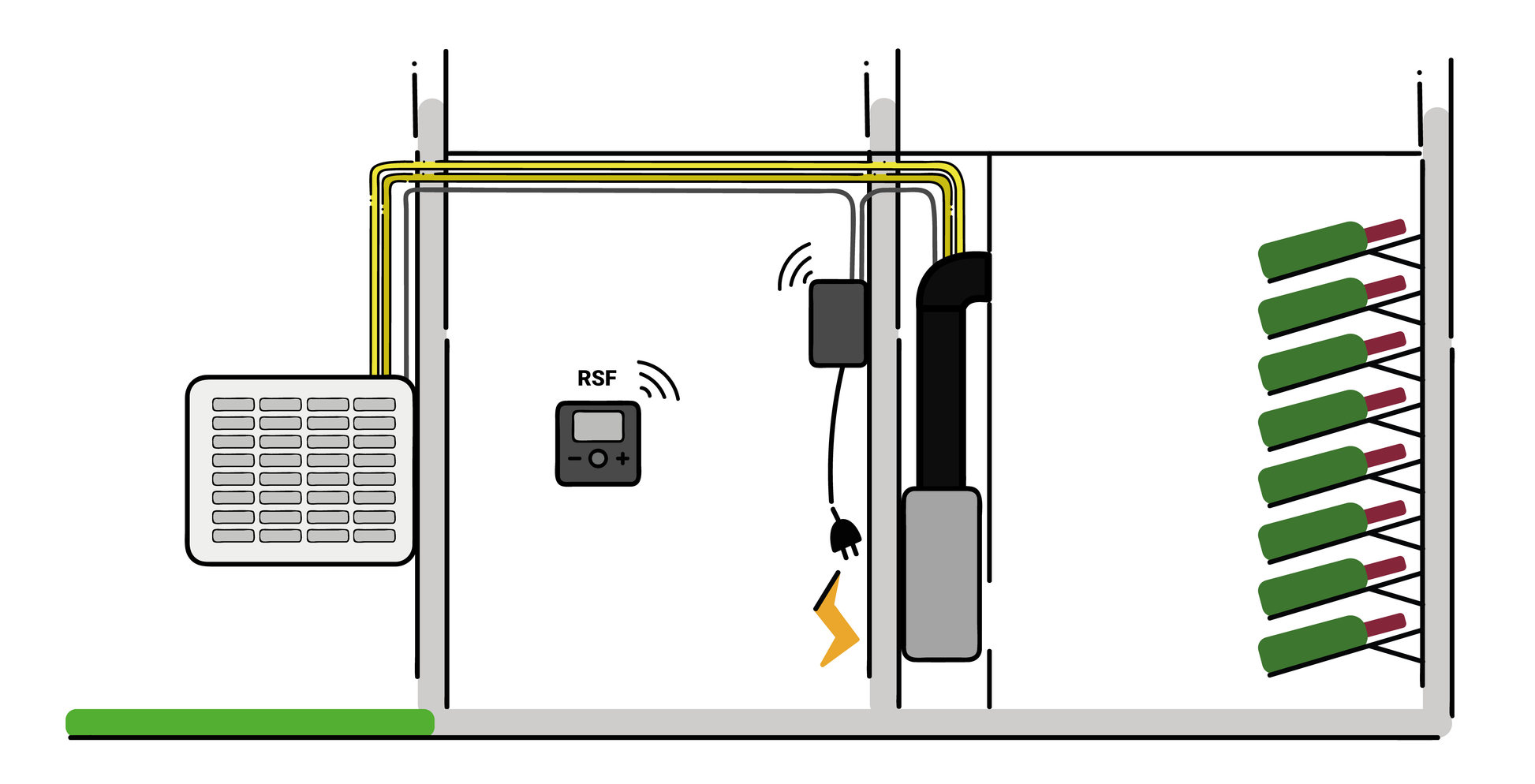

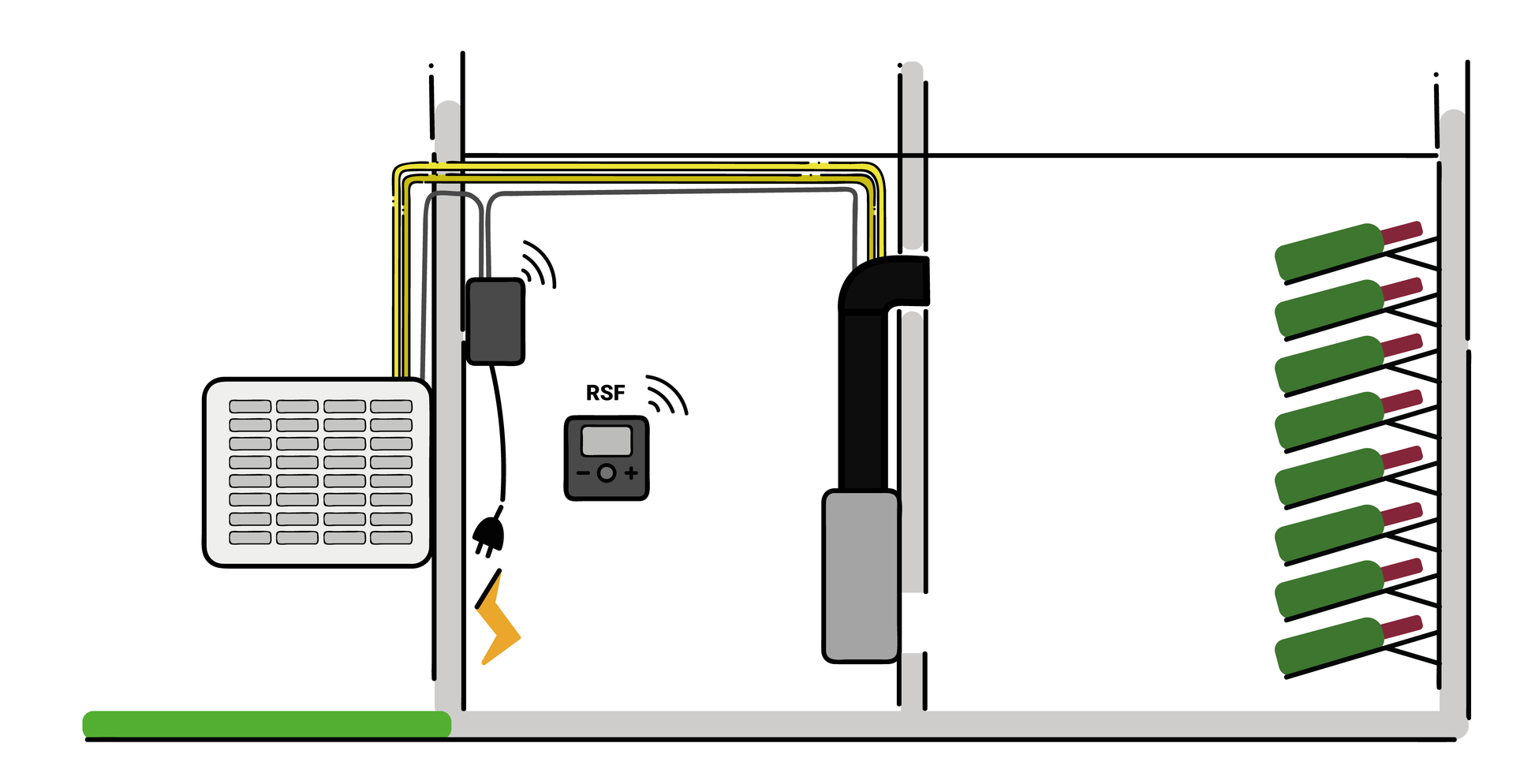

The EVI uses a split configuration: the indoor wall-mounted evaporator unit is installed inside cabinetry or an adjacent room, while the condensing unit is positioned outdoors. This arrangement allows refrigerant pipework to be run between the two units, ensuring the compressor noise and heat rejection remain entirely outside the cellar environment. Installation should be carried out by a qualified refrigeration engineer. Please contact us if you require guidance on siting the outdoor unit or running pipework for your specific cellar layout.
