EVG
EVG

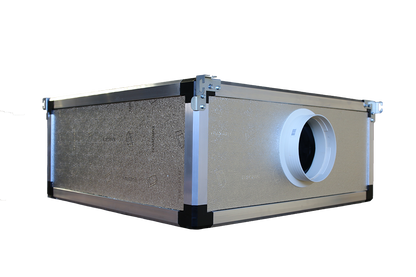

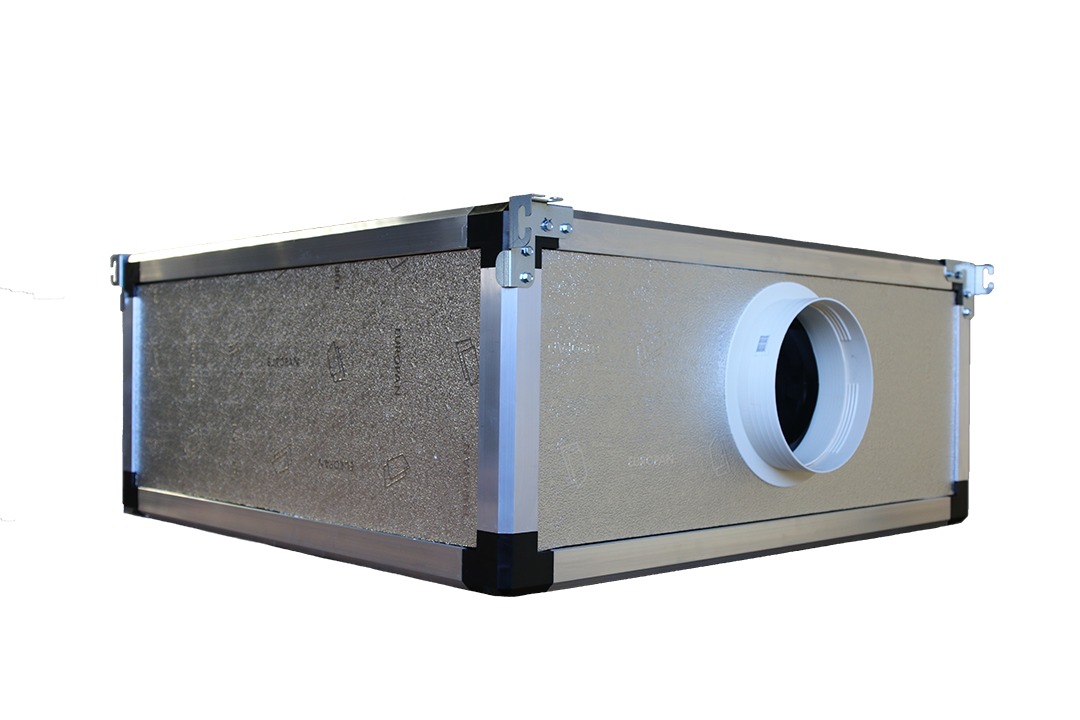

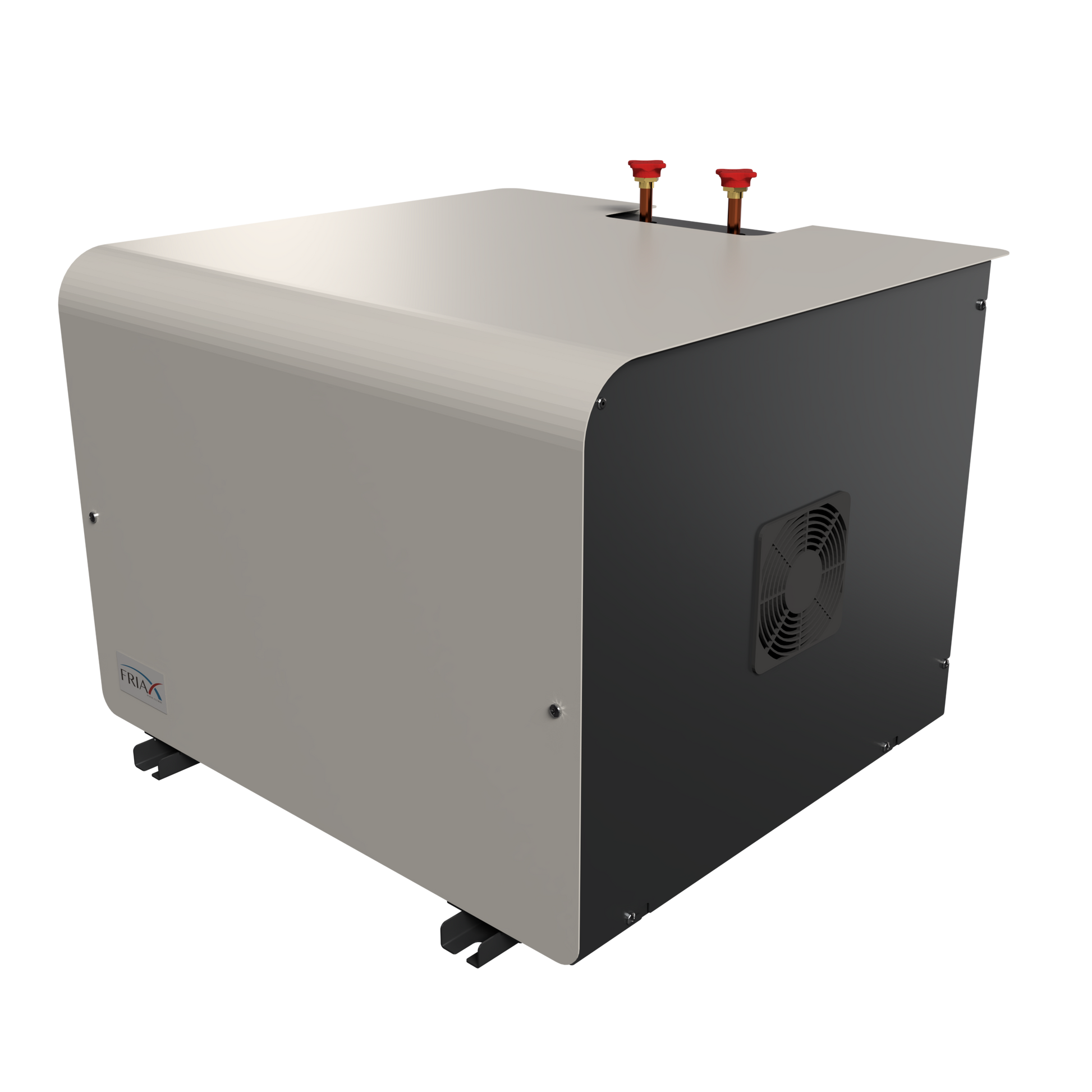

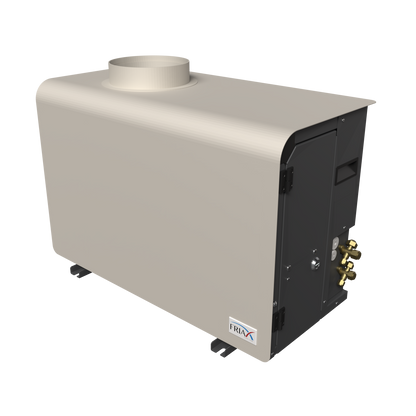

The EVG evaporator, ceiling-mounted and concealed above the ceiling, for rooms up to 30m³, paired with a direct air condensing unit from the split system GCH Group. The SPC30 H-EVG system provides cooling, heating and humidification on R513A refrigerant, with the indoor evaporator separated from the outdoor condenser to keep cellar noise low.
Key Features
Key Features
- Split-system design separates the indoor evaporator from the outdoor condensing unit, keeping compressor noise outside the cellar
- Horizontal ductable indoor unit sits discreetly above a false ceiling or within cabinetry, with air distributed through concealed ductwork
- Full climate control: cooling, heating and humidification in a single system
- Maintains optimal wine storage conditions — 10–14 °C with controlled humidity — year-round
- Six capacity sizes (30, 48, 82, 122, 170 and 230 m³) to match your cellar volume precisely
- R513A refrigerant — a low global-warming-potential gas meeting current environmental regulations
Taxes included.
Shipping calculated at checkout.
Quantity
Want to order this product?
Complete the short enquiry form or call
Request a Quote
EVG
Description
The EVG is a ceiling-mounted split-system wine cellar conditioner, concealed above the ceiling, that pairs a compact indoor evaporator with a separate outdoor condensing unit — keeping your cellar quietly climate-controlled while all the mechanical noise stays outside. Available for cellars of up to 230m³, it delivers continuous wine storage performance with cooling, heating and humidification built in as standard.
Key Features
- Split configuration separates the indoor evaporator from the outdoor condenser, keeping cellar noise to a minimum
- 3 condensing options
- GCH - Air Condensing

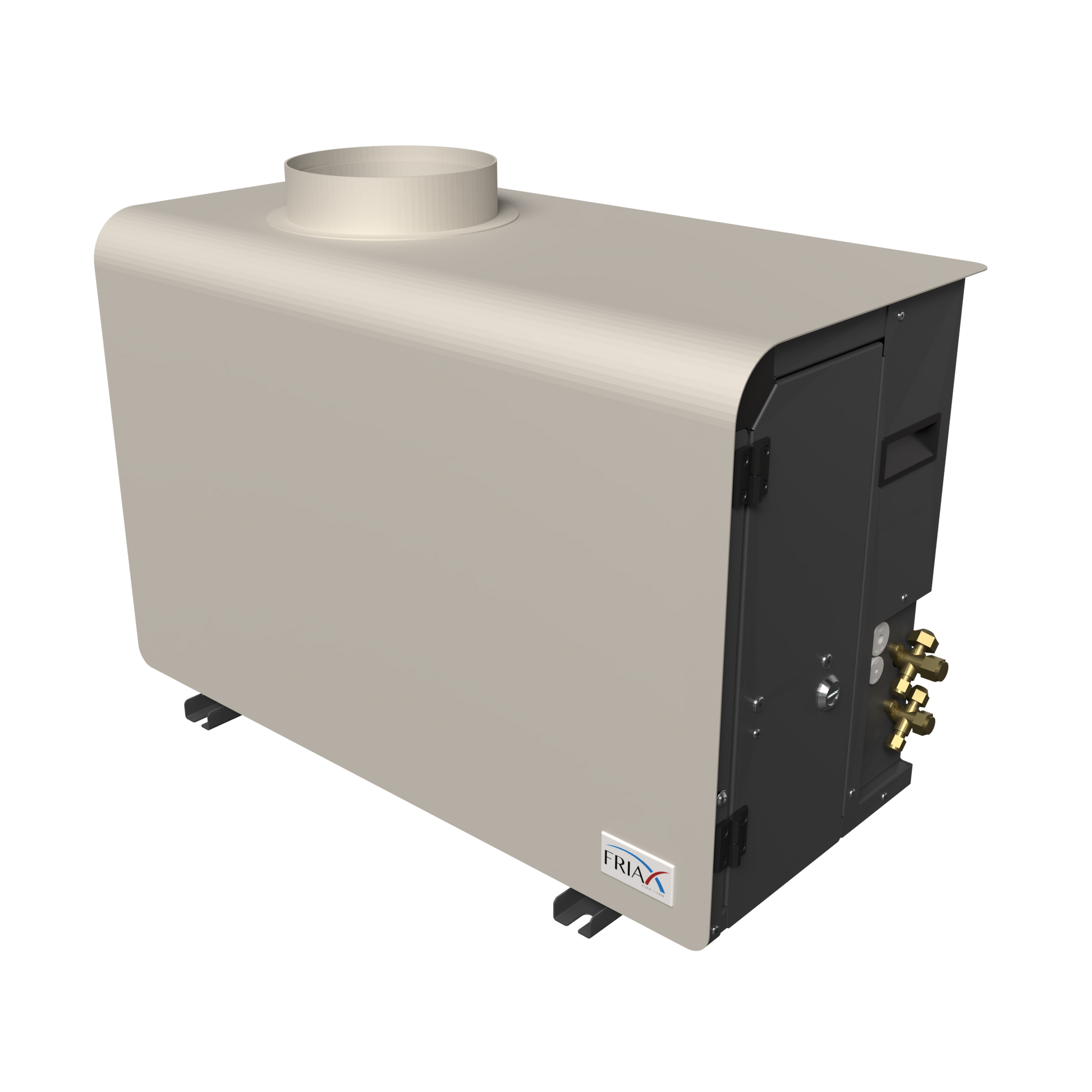

- GCG - Ductable Air Condensing
- GCW - Water Condensing
- Cooling, heating and humidification in a single system — maintains ideal wine storage conditions year-round
- Ceiling-mounted indoor evaporator, concealed above the ceiling, for straightforward installation without sacrificing cellar floor or ceiling space
- Available in 6 capacities: up to 230m³, with the GCH condensing unit matched to your cellar volume
- Uses R513A refrigerant — a low global-warming-potential gas that meets current European environmental regulations
Specifications
- Cellar capacity: 30m³ / 48m³ / 82m³ / 122m³ / 170m³ / 230m³
- System type: Ceiling-mounted and concealed split system
- Functions: Cooling, heating, humidification
- Refrigerant: R513A
-

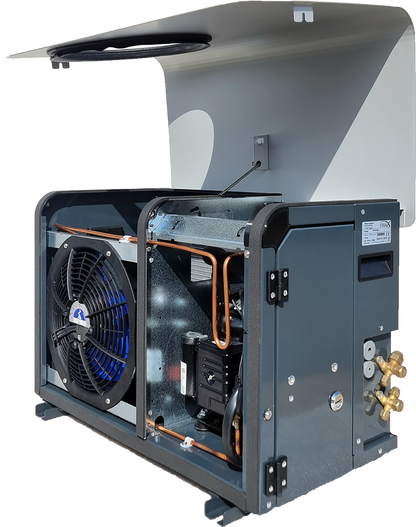

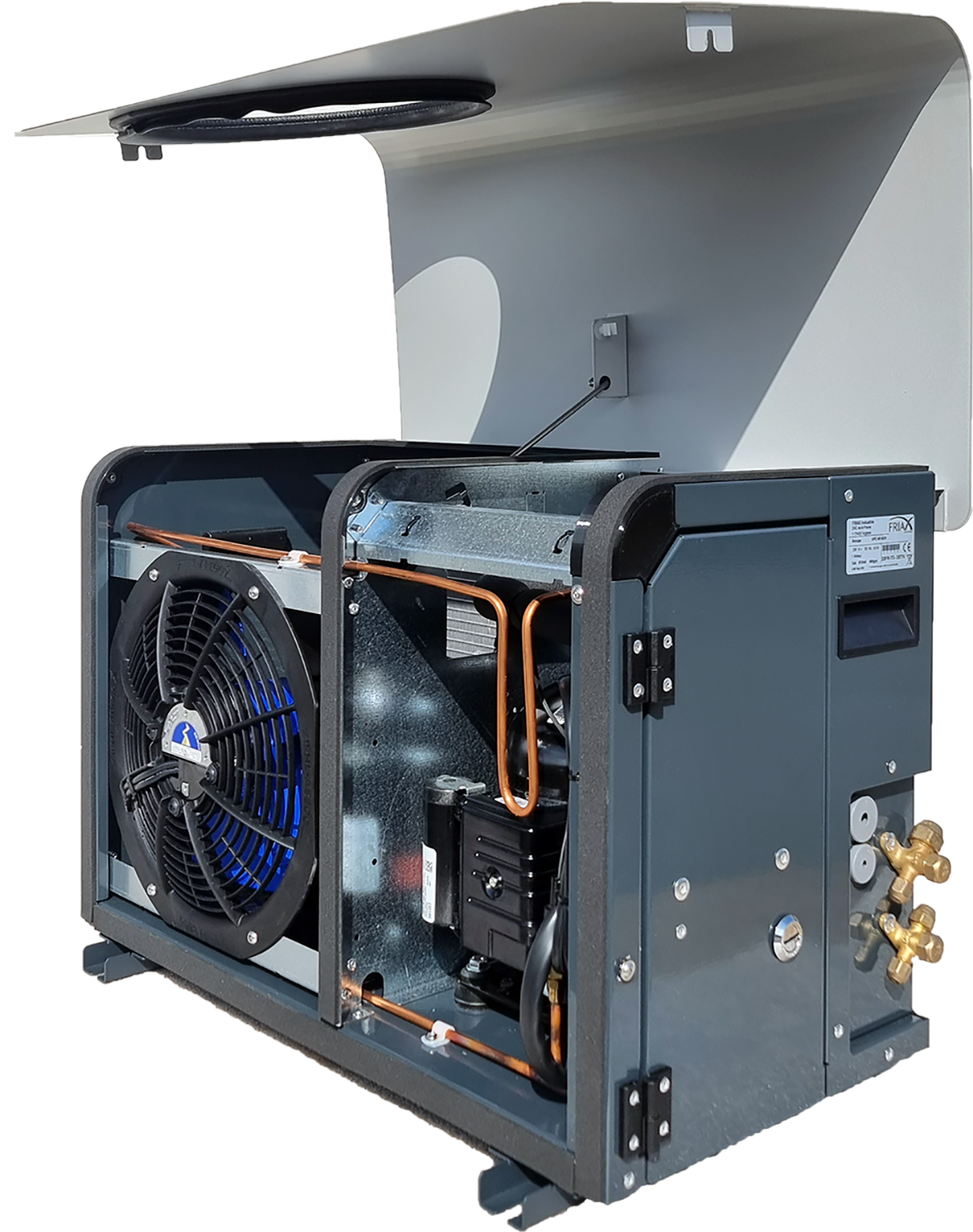

Condenser units:
- GCH - Air Condensing
- GCG - Ductable Air Condensing
- GCW - Water Condensing
Installation Notes

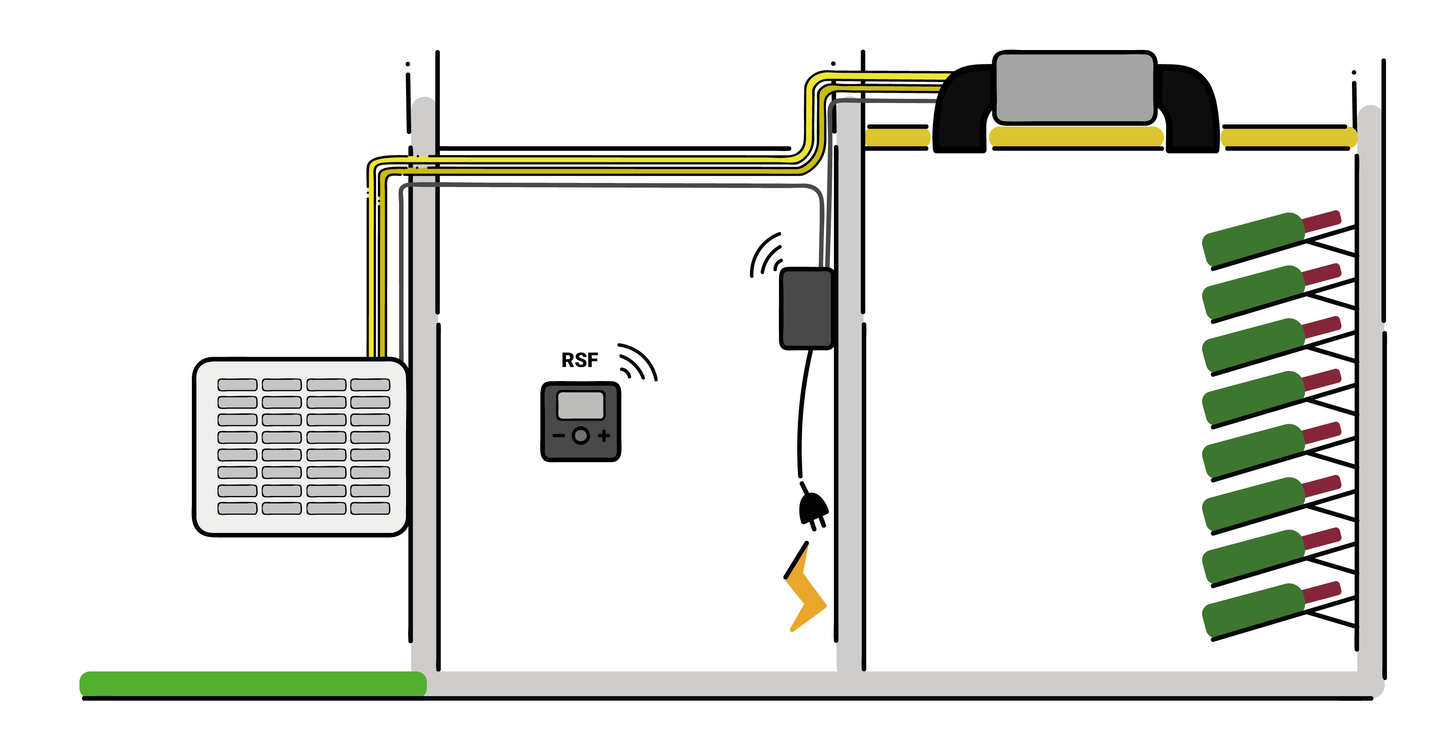

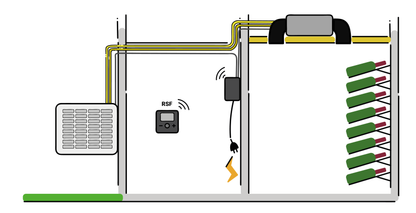

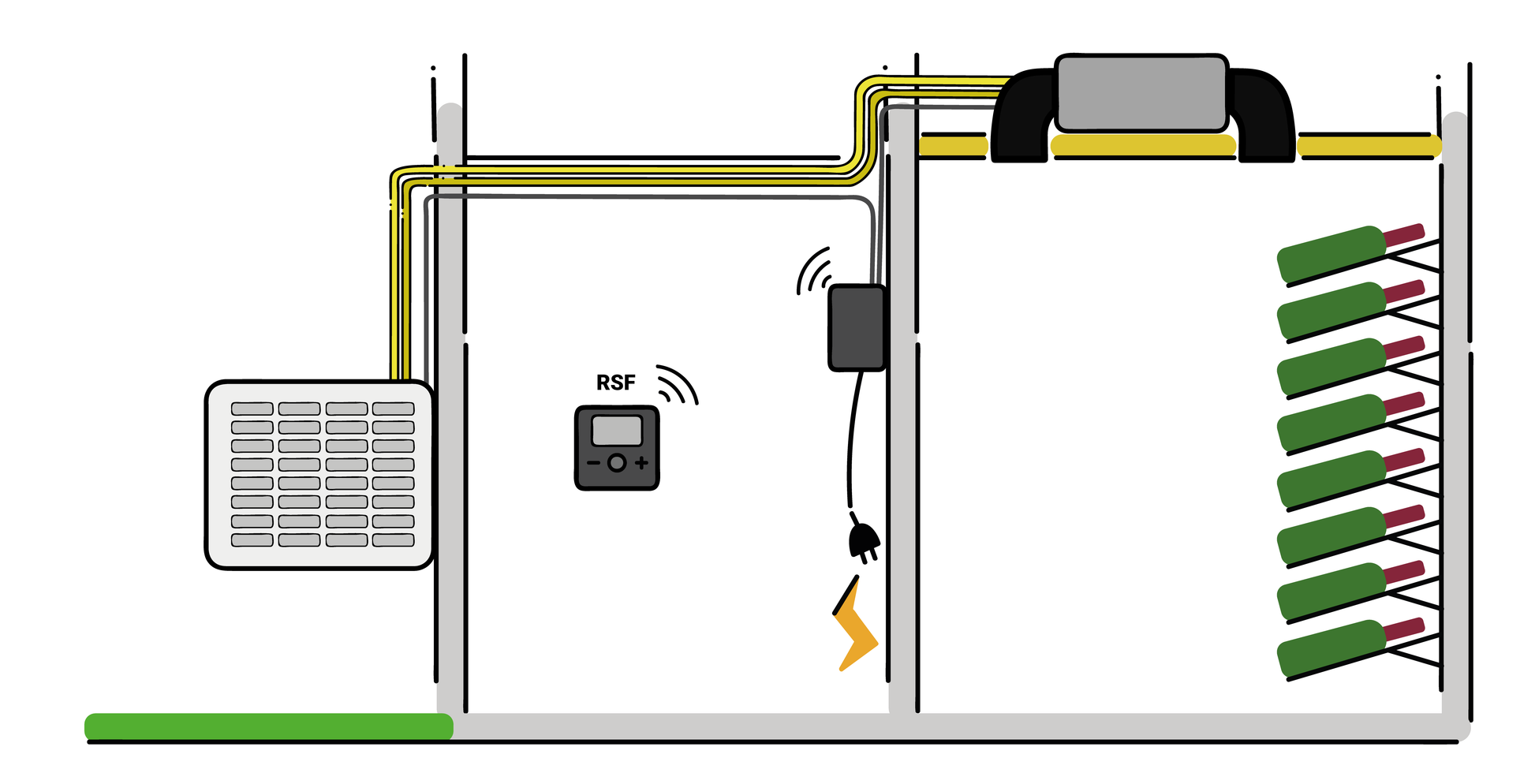

The EVG uses a split configuration: the indoor ceiling-mounted evaporator unit is installed above the ceiling, while the condensing unit is positioned outdoors. This arrangement allows refrigerant pipework to be run between the two units, ensuring the compressor noise and heat rejection remain entirely outside the cellar environment. Installation should be carried out by a qualified refrigeration engineer. Please contact us if you require guidance on siting the outdoor unit or running pipework for your specific cellar layout.
